| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF611-W | 8-35243-04874-4 | 1/2″ | 50 | 500 |
| OF612-W | 8-35243-04875-1 | 3/4″ | 25 | 250 |
| OF613-W | 8-35243-04876-8 | 1″ | 10 | 100 |
| OF614-W | 8-35243-04990-1 | 1-1/4″ | 10 | 100 |
| OF615-W | 8-35243-04992-5 | 1-1/2″ | 10 | 50 |
| OF616-W | 8-35243-04994-9 | 2″ | 5 | 50 |
| OF617-W | 8-35243-05259-8 | 2-1/2″ | – | 12 |
| OF618-W | 8-35243-05260-4 | 3″ | – | 12 |
| OF619-W | 8-35243-05261-1 | 3-1/2″ | – | 6 |
| OF620-W | 8-35243-05262-8 | 4″ | – | 6 |
Company:
Certificates:

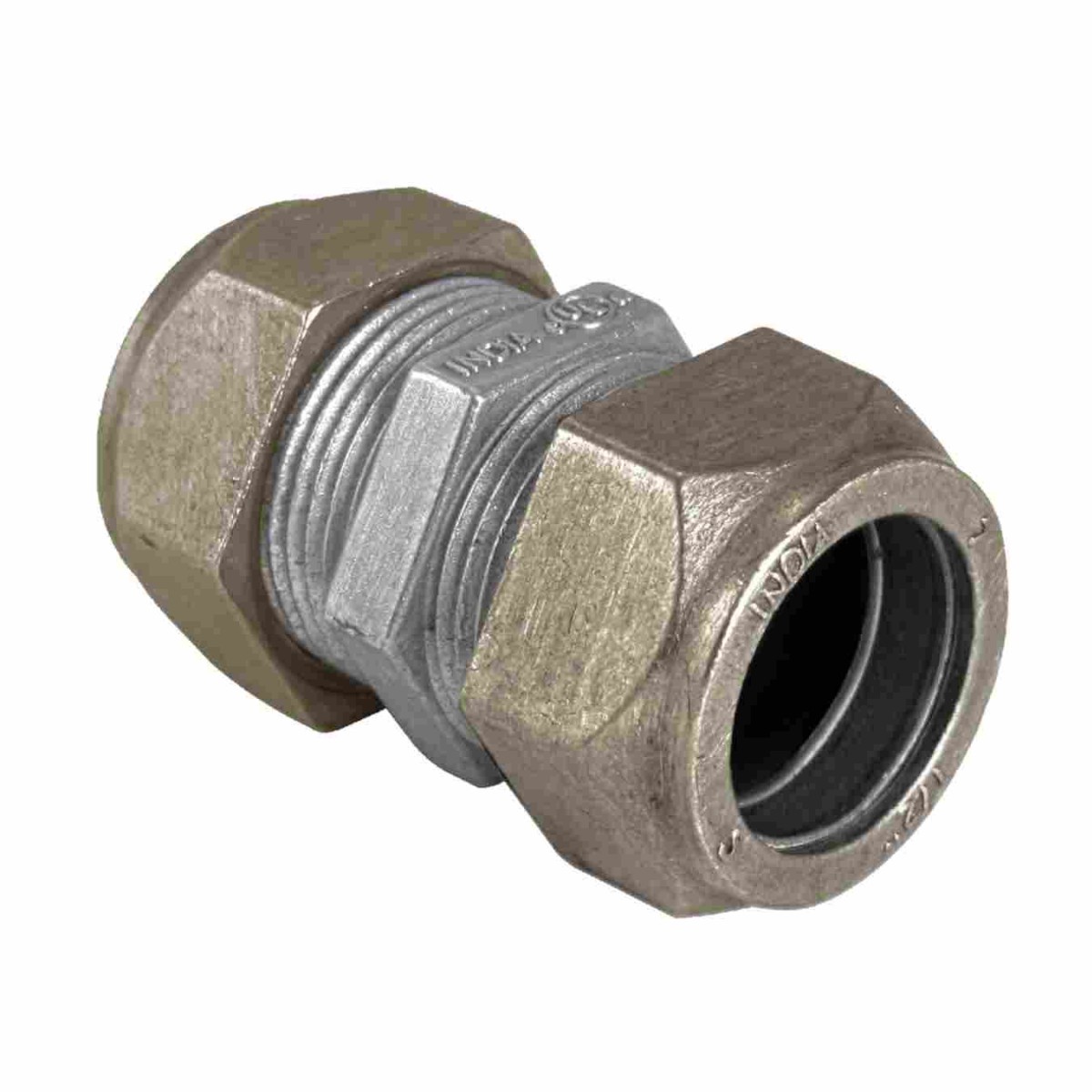

ZINC DIE-CAST EMT COUPLINGS COMPRESSION TYPE & RAIN TIGHT
Product Description
Orbit Industries' rain tight zinc die-cast EMT compression couplings are used to connect the ends of two EMT thinwall conduits together to extend the raceway. Orbit Industries’ rain-tight EMT compression connectors have been designed to comply with the new rain-tight test requirements along with the 2008 NEC 358.42 and 314.15 requirements.
Features
• Zinc Die Cast
• Rain-Tight
• Suitable for applications above 600V
• Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits
• Compression Cap color may vary
Data
