STEEL EMT COUPLINGS COMPRESSION TYPE

Company:

Certificates:

logo_listing

STEEL EMT COUPLINGS COMPRESSION TYPE

Product Description

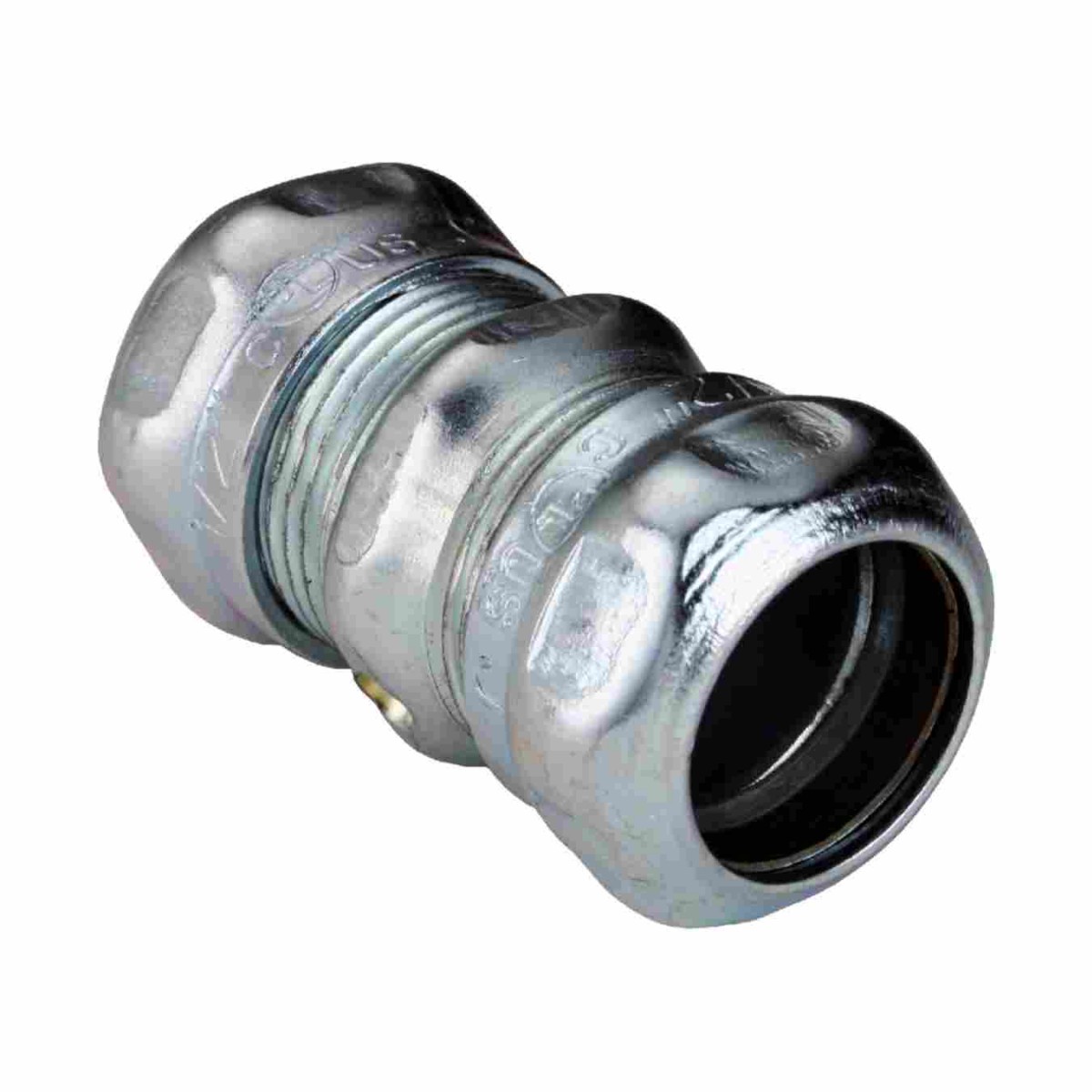

Orbit Industries steel EMT compression couplings are used to connect the ends of two EMT conduits together to extend the raceway. The steel construction ensures mechanical protection and the connection between one conduit to another.

Features


• Steel
• Zinc Electro-Plated
• Concrete-Tight
• Suitable for applications above 600V
• Compression Cap color may vary
• Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits

Data

CAT NO UPC TRADE SIZE STD PKG MASTER CTN
OF7611 8-35243-05109-6 1/2″ 25 250
OF7612 8-35243-05111-9 3/4″ 25 250
OF7613 8-35243-05113-3 1″ 10 100
OF7614 8-35243-05115-7 1-1/4″ 10 100
OF7615 8-35243-05117-1 1-1/2″ 10 50
OF7616 8-35243-05119-5 2″ 5 50
OF7617 8-35243-05121-8 2-1/2″ – 12
OF7618 8-35243-05123-2 3″ – 12
OF7619 8-35243-05125-6 3-1/2″ – 6
OF7620 8-35243-05127-0 4″ – 6
