| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF7601 | 8-35243-05069-3 | 1/2″ | 25 | 250 |
| OF7602 | 8-35243-05073-0 | 3/4″ | 25 | 250 |
| OF7603 | 8-35243-05077-8 | 1″ | 10 | 100 |
| OF7604 | 8-35243-05081-5 | 1-1/4″ | 10 | 100 |
| OF7605 | 8-35243-05085-3 | 1-1/2″ | 10 | 50 |
| OF7606 | 8-35243-05089-1 | 2″ | 5 | 50 |
| OF7607 | 8-35243-05093-8 | 2-1/2″ | – | 12 |
| OF7608 | 8-35243-05097-6 | 3″ | – | 12 |
| OF7609 | 8-35243-05101-0 | 3-1/2″ | – | 6 |
| OF7610 | 8-35243-05105-8 | 4″ | – | 6 |
Company:
Certificates:

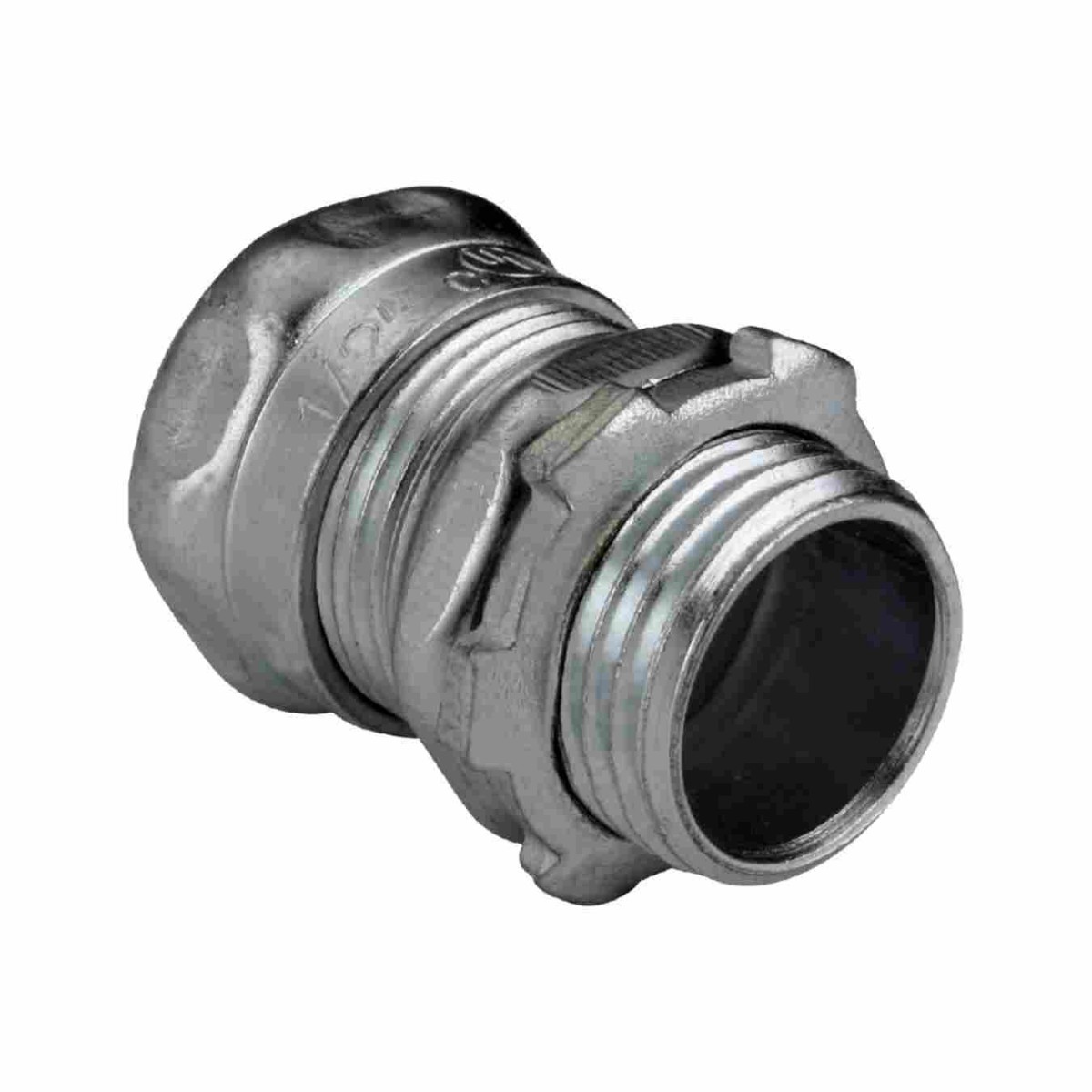

STEEL EMT CONNECTORS COMPRESSION TYPE
Product Description
Orbit Industries compression connectors are used to bond EMT conduits to electrical junction boxes or enclosures. The steel construction ensures mechanical protection and the conduit to the designated electrical junction box or enclosure.
Features
• Steel
• Zinc Electro-Plated
• Concrete-Tight
• Suitable for applications above 600V
• Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits
Data
