| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| SRM1-50 | 8-35243-03805-9 | 1/2″ | 100 | 1000 |
| SRM1-75 | 8-35243-03806-6 | 3/4″ | 50 | 500 |
| SRM1-100 | 8-35243-03807-3 | 1″ | 25 | 250 |
| SRM1-125 | 8-35243-03808-0 | 1-1/4″ | 20 | 200 |
| SRM1-150 | 8-35243-03809-7 | 1-1/2″ | 10 | 100 |
| SRM1-200 | 8-35243-03810-3 | 2″ | 10 | 50 |
| SRM1-250 | 8-35243-03811-0 | 2-1/2″ | – | 25 |
| SRM1-300 | 8-35243-03812-7 | 3″ | – | 25 |
| SRM1-350 | 8-35243-03813-4 | 3-1/2″ | – | 10 |
| SRM1-400 | 8-35243-03814-1 | 4″ | – | 10 |
Company:
Certificates:

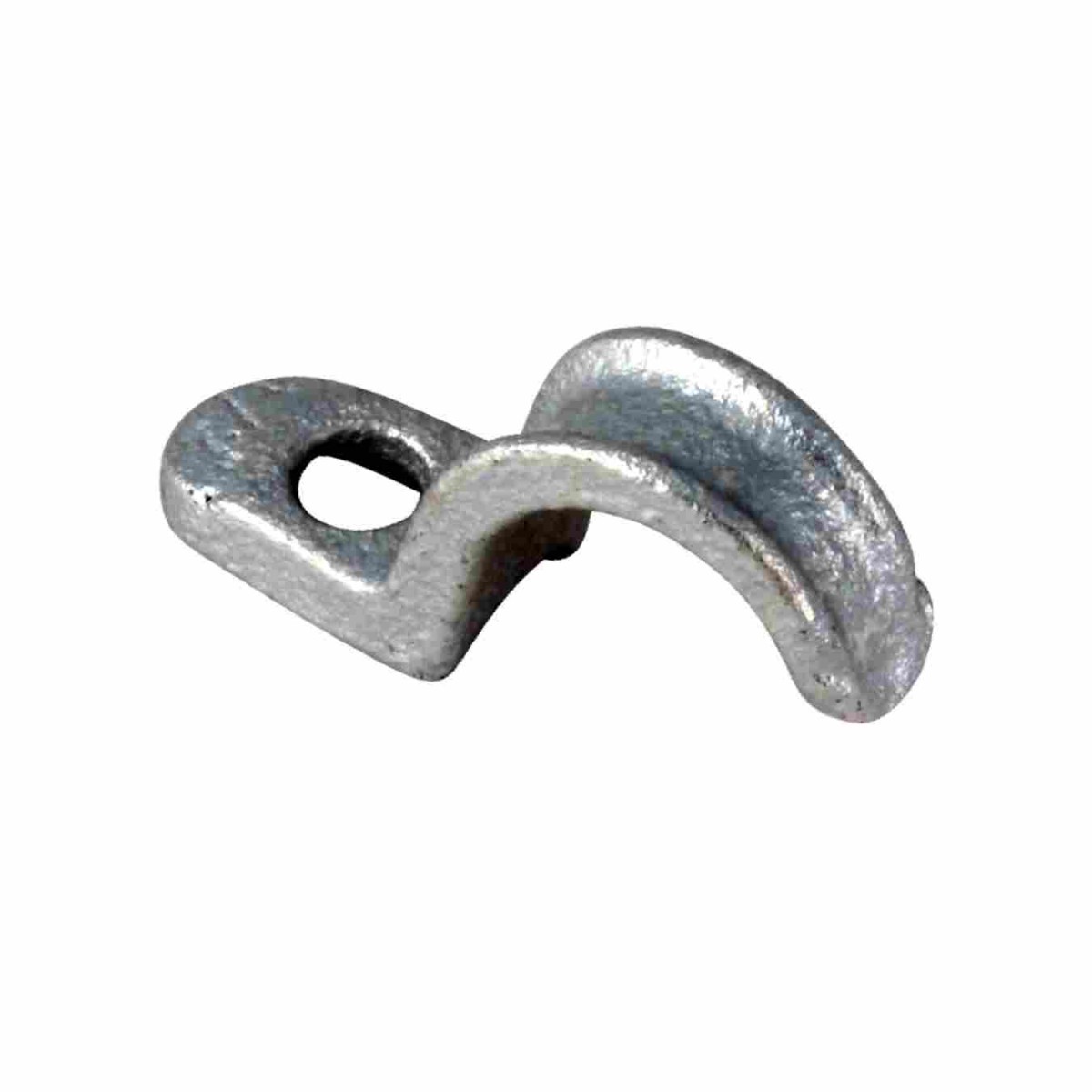

MALLEABLE IRON 1-HOLE RIGID STRAPS
Product Description
Orbit Industries malleable iron rigid straps are used to support rigid conduit and IMC to mountingsurface. Orbit Industries offers malleable iron 1-hole rigid straps in a variety of sizes
Features
• Malleable Iron
• Zinc Electroplated for Corrosion Protection
• 1-Hole
Data
