| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| RS-50 | 8-35243-05181-2 | 1/2″ | 25 | 250 |
| RS-125 | 8-35243-05178-2 | 1-1/4″ | 1 | 25 |
| RS-150 | 8-35243-05179-9 | 1-1/2″ | 1 | 25 |
| RS-200 | 8-35243-05180-5 | 2″ | 1 | 10 |
Company:
Certificates:

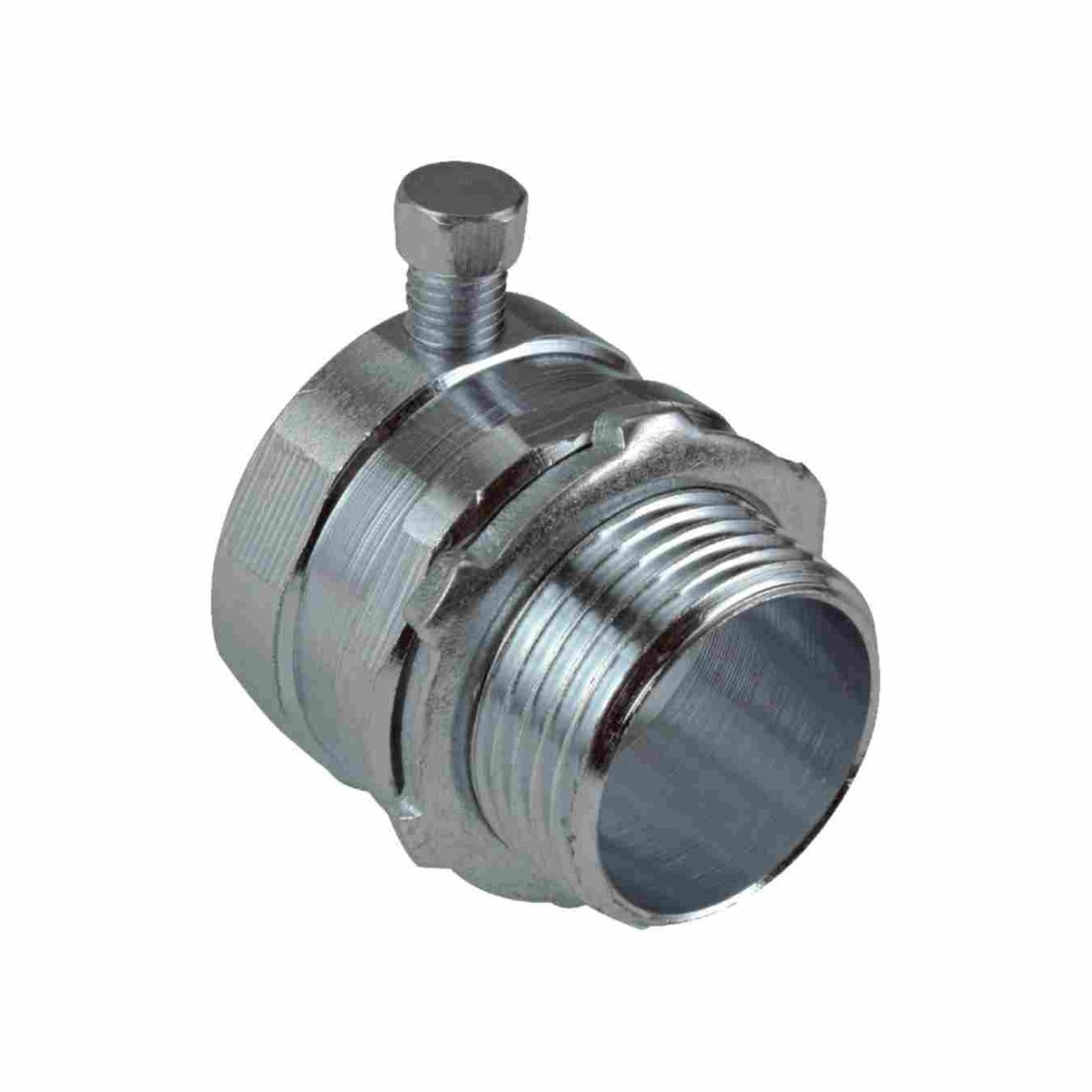

STEEL RIGID CONNECTORS SET-SCREW TYPE
Product Description
Orbit Industries' set-screw connectors are used in dry locations to bond unthreaded rigid or IMC conduits to electrical junction boxes or electrical enclosures. The steel construction ensures mechanical protection to the conduit and designated electrical junction box or enclosure. These connectors eliminate the need to thread bald conduits to connect them to boxes or enclosures. In damp locations, set-screw connectors are also of excellent corrosion protection with zinc electroplated.
Features
• Steel
• Electroplated Zinc
• For use in dry location
Data
