EMT TO BOX PULL ELBOWS SET-SCREW TYPE WITH GASKET

Company:

Certificates:

logo_listing

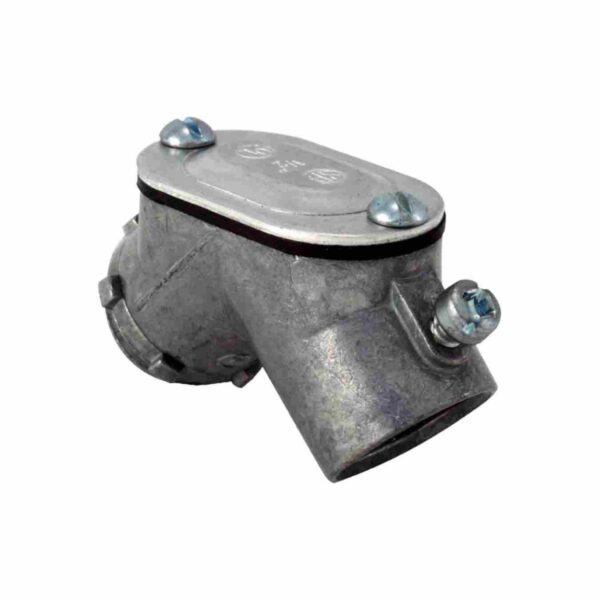

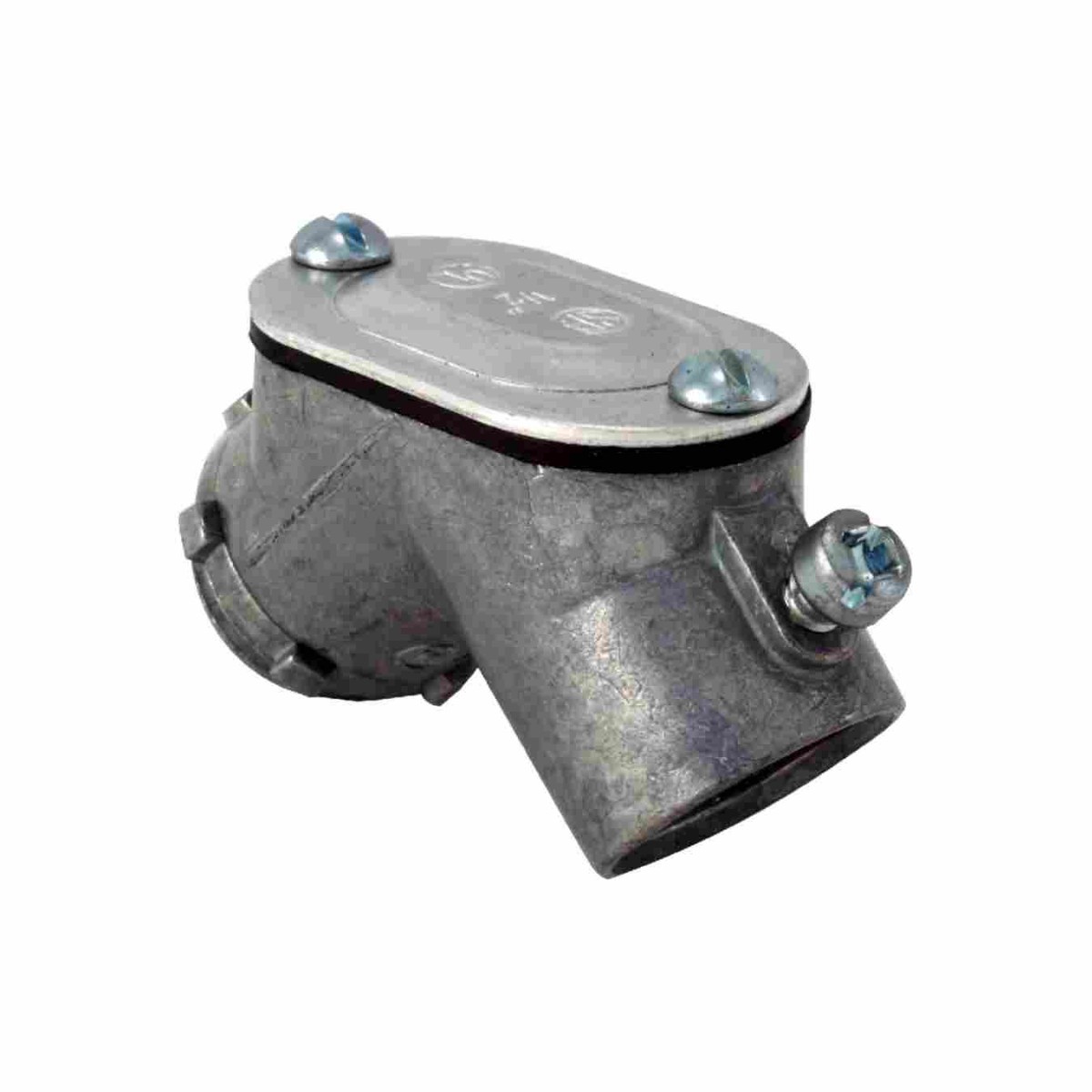

EMT TO BOX PULL ELBOWS SET-SCREW TYPE WITH GASKET

Product Description

Orbit Industries’ set-screw EMT to box pull elbows are used when 90° turns are needed in conduits and when wires must be pulled through elbows before making the turn into the electrical junction boxes or enclosure. The set-screw pull elbows are protected from dirt, dust and moisture by a gasket and cover and they are ready to use immediately. This removable gasket and cover also allow for wires to be pulled and fed back into pipes at a 90° angle or turn. The connection is secured by the locknut feature on Orbit Industries’ pull elbows.

Features


• Zinc Die Cast
• Aluminum Cover
• With Gasket

Data

CAT NO UPC TRADE SIZE STD PKG MASTER CTN
SSPEB-G50 8-35243-05232-1 1/2″ 10 100
SSPEB-G75 8-35243-05233-8 3/4″ 5 50
SSPEB-G100 8-35243-05230-7 1″ – 25
SSPEB-G125 8-35243-05231-4 1-1/4″ – 20
